Plot method for svyfui objects

Plot method for svyfui objects

Usage

# S3 method for class 'svyfui'
plot(
  x,
  include_joint_ci = TRUE,
  joint_fill = "#56B4E9FF",
  pw_fill = "#0072B2FF",
  joint_alpha = 0.3,
  pw_alpha = 0.3,
  ...
)

Arguments

x

An object of class svyfui, usually returned by svyfui.

include_joint_ci

Logical; if TRUE, includes joint confidence intervals in the plot (default TRUE).

joint_fill

Color for joint confidence interval fill (default "#56B4E9FF").

pw_fill

Color for pointwise confidence interval fill (default "#0072B2FF").

joint_alpha

Transparency level for joint confidence interval fill (default 0.3).

pw_alpha

Transparency level for pointwise confidence interval fill (default 0.3).

...

Additional arguments passed to plotting functions.

Value

A ggplot object (recommended).

Examples

# \donttest{
fit <- svyfui(Y ~ X, data = svyfosr::sample_df, weights = weight)
#> Estimating coefficients
#> Smoothing coefficients
#> Bootstrapping
#> Obtaining pointwise and joint confidence intervals
#> Completed!

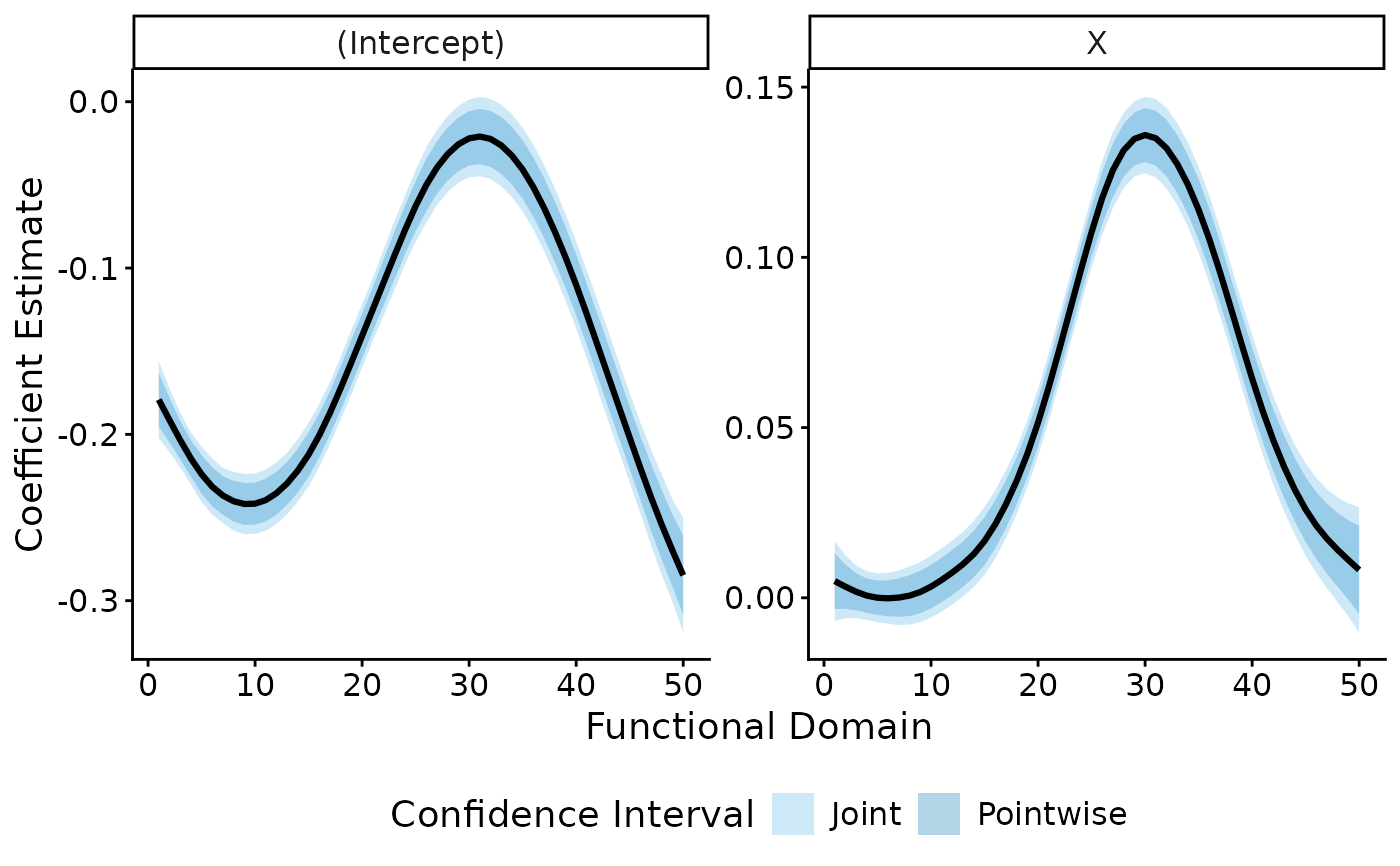

plot(fit)

# }
